Understanding cardinality (as in ResNext) from representation collapse

Author: Ziming Liu (刘子鸣)

Motivation

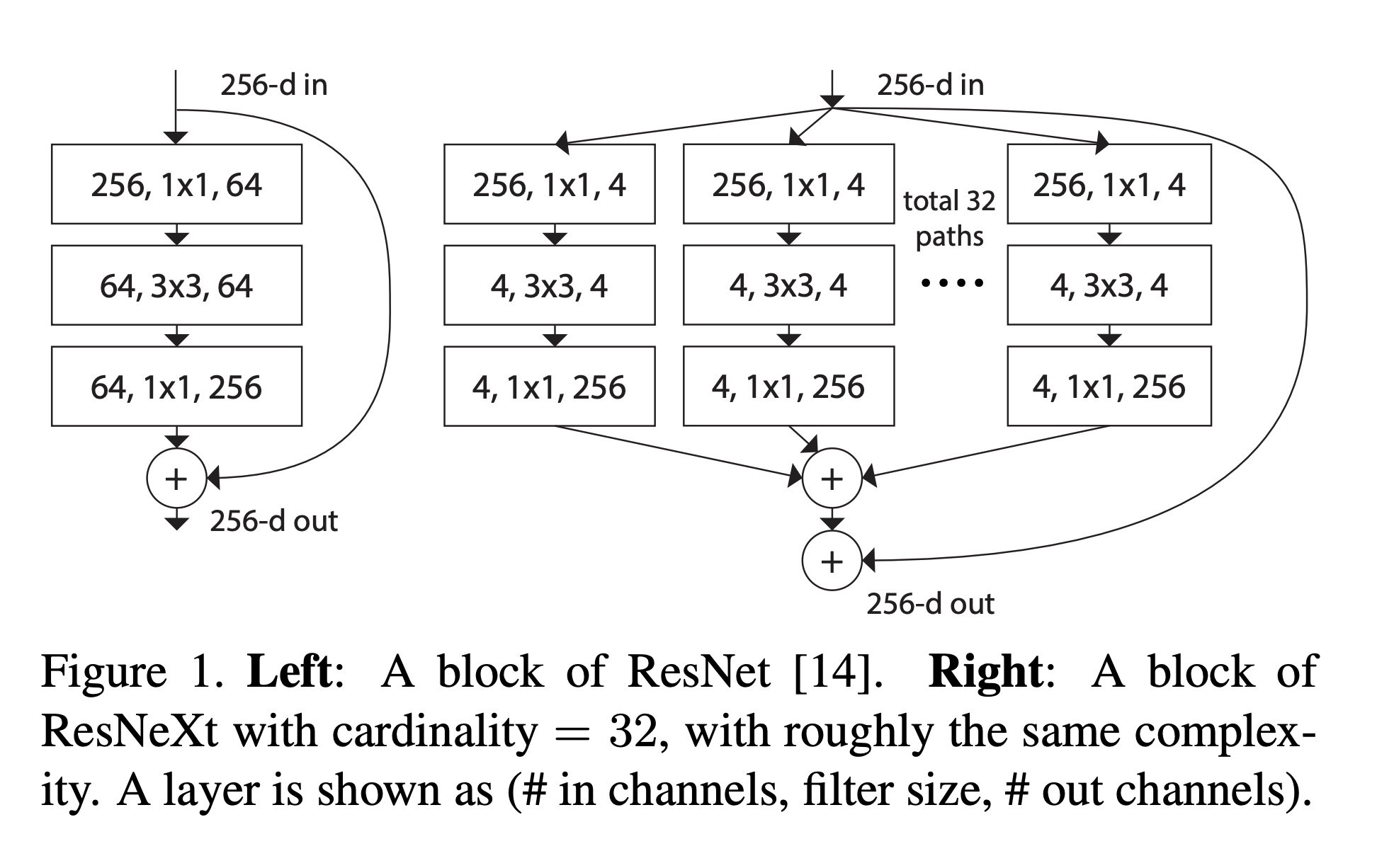

I was listening to the 7-hour podcast between Saining Xie and Xiaojun Zhang, where Saining discussed his earlier work. That motivated me to dig deeper into it. The first paper I want to understand is ResNext, which introduces a branching structure: instead of using a single wide module, ResNext employs multiple narrow modules in parallel, sums their outputs, and then merges them into the residual stream.

This multi-branch design is reminiscent of mixture-of-experts (MoE), in the sense that both place multiple modules in parallel. The benefits of MoE have been discussed in MOE-1. However, multi-branch architectures are closer to dense modules, since they do not involve gating (unlike MoE). In this sense, a multi-branch layer can be viewed as a modularized version of a dense layer. Therefore, the core question becomes: what are the benefits (or drawbacks) of modularity?

A common argument for multi-branch designs is specialization. Since this notion is somewhat vague, I instead approach it from the perspective of representation diversity. To quantify this, I use the effective rank (as in depth-1) to measure the degree of representation diversity/collapse.

Problem setup and Results

We consider a simple regression problem: \(y = \sum_{i=1}^{10} {\rm sin}^2(5x_i)\)

We train a 3-layer MLP to fit this function, fixing the total width to 512. When the cardinality is 1, the model reduces to a standard dense layer. When the cardinality \(C > 1\), the weight matrix (512 × 512) is partitioned into \(C \times C\) blocks, and only the diagonal blocks are kept non-zero (hence the “modular” structure).

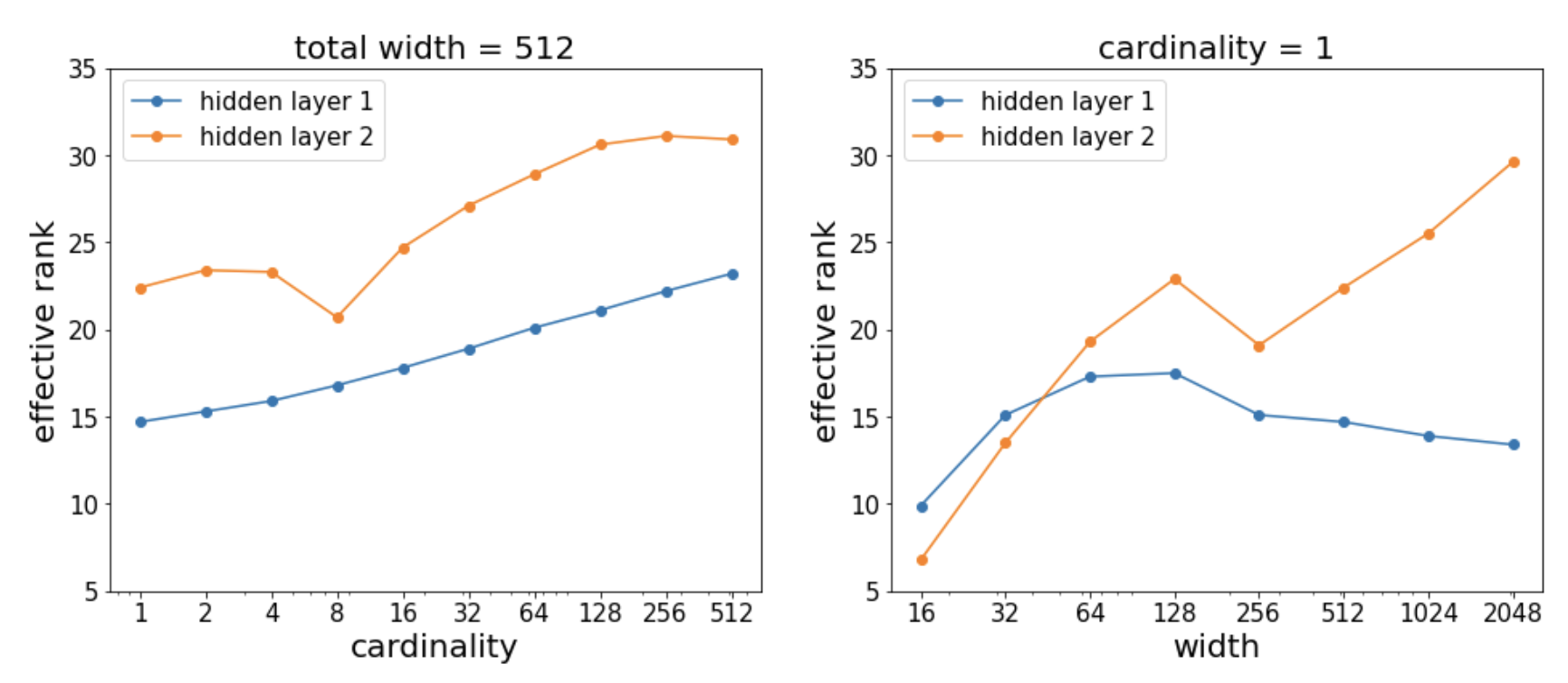

I plot how the effective rank varies with cardinality (left plot). For comparison, I also sweep the width while fixing \(C=1\) (right subplot).

Notably, when the total width is fixed, the number of parameters scales as \(1/C\). Yet, the effective rank still increases with \(C\)—even as the total number of parameters decreases.

In contrast, when \(C=1\) and the width \(w\) increases, the number of parameters scales as \(w^2\). Although the effective rank does increase slightly with \(w\), the cost is significantly higher.

Overall, this suggests that increasing cardinality is a far more parameter-efficient way to promote representation diversity than increasing width.

Code

Google Colab notebook available here.
